| 品牌：Hirose/广濑 | 型号：HR10A-10J-12S | 应用范围：背板 |
| 种类：插头/插座 | 接口类型：AC/DC | 加工定制：否 |
| 支持卡数：单卡 | 读卡类型：CF | 形状：圆形 |
| 制作工艺：冷压 | 特性：防爆 | 工作频率：高频 |
| 接触件材质：磷青铜 | 绝缘体材质：尼龙 | 芯数：12 |
| 针数：12 |

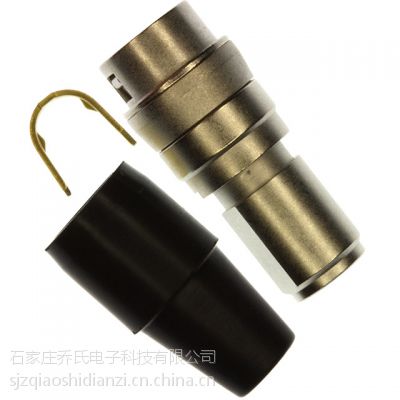

HR10A-10J-12S广濑HRS代理北京优势现货圆形连接器插头
HR10A-10J-12S广濑HRS代理北京优势现货圆形连接器插头
石家庄乔氏电子科技有限公司，成立十几年以来一直以其超快发货，超短的交期，***名列电子元器件销售***前茅。优势的货源，***的系统，给您下单带来快速的采购体验。能做到在您下单的同时，货随单一同发送出去，让您在超短时间完成采购任务。Hirose、JST、TE、AMP、Molex都是公司代理的优势品牌。其他几百家世界***品牌的连接器件我司也有出样品。并且***低价和的原装正品，如有假货，承担一切法律责任。
卜先生
**********************************
SJZ Joes Electronic Technology Co. Ltd.
石家庄乔氏电子科技有限公司
电话：0311-87367982
传真: 0311-66687687
手机：+86-18631133518
QQ: 2853732922
E-mail: Gatsby@joesdz.cn
***：
淘宝：
***********************************
HR10A-10J-12S广濑HRS代理北京优势现货圆形连接器插头
HR10A-10J-12S(73)
Product HR10A-10J-12S(73)
Series HR10
Connector Type Jack
Salt Spray Test Duration (Corrosion Resistance) 48 h
Number of Positions 12
Contact Plating Silver
Detailed Specifications
Last Updated On Nov. 6, 2015
Product information
Part No. HR10A-10J-12S(73)
Basic information
Connector Type Jack
Salt Spray Test Duration (Corrosion Resistance) 48 h
Number of Positions 12
Contact Plating Silver
Mating/Unmating Cycles 1000
Rated Current 2 A
Rated Voltage (AC) AC 100 V
Rated Voltage (DC) DC 140 V
Connector Orientation Straight
Wire Termination Method Soldering
Locking Style Push-pull
Recommended Wire Size (AWG) AWG 26
Shell Material Metal
Operating Temperature -25 to 85 ℃
Mechanical Specifications
Metal Shields No
Contact Gender Female
Electrical/Optical Specifications
Withstanding voltage 300 V Max.
Dimensional Information
Connector Length 14 mm
Connector Width 14 mm
Connector Height 43.5 mm
Cable Outer Diameter 7 mm
Packaging Specifications
Packaging Type Bag
Minimum Order Quantity 1 PCS
Mass 15.15 g
<<>
