| 品牌：Hirose/广濑 | 型号：HR10A-10J-10P | 应用范围：电源 |
| 种类：插头/插座 | 接口类型：USB | 加工定制：否 |
| 支持卡数：单卡 | 读卡类型：CF | 形状：圆形 |
| 制作工艺：熔接 | 特性：防爆 | 工作频率：低频 |
| 接触件材质：磷青铜 | 绝缘体材质：尼龙 | 芯数：10 |
| 针数：10 |
广濑圆形连接器HRS代理优势现货库存HR10A-10J-10P原装正品
广濑圆形连接器HRS代理优势现货库存HR10A-10J-10P原装正品
作为一家专业的电子元器件代理经销商。乔氏电子做到了价比别家低，交期比别家快，满足您的所需。Hirose/广濑，molex，JST，TE，AMP等十几家世界***都是我们的优势代理品牌。大量现货在库存，并定期更新。后台系统电脑操作，下单，打款，时间认领。立即安排发货。让您体验非一般的采购经历。
卜先生
**********************************
SJZ Joes Electronic Technology Co. Ltd.
石家庄乔氏电子科技有限公司
电话：0311-87367982
传真: 0311-66687687
手机：+86-18631133518
QQ: 2853732922
E-mail: Gatsby@joesdz.cn
***：
淘宝：
***********************************
广濑圆形连接器HRS代理优势现货库存HR10A-10J-10P原装正品
HR10A-10J-10P(73)

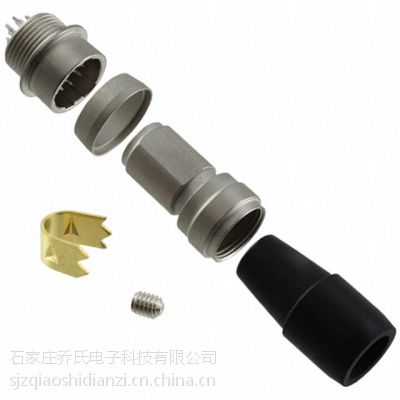

Product HR10A-10J-10P(73)
Series HR10
Connector Type Jack
Salt Spray Test Duration (Corrosion Resistance) 48 h
Number of Positions 10
Contact Plating Silver
Detailed Specifications
Last Updated On Nov. 6, 2015
Product information
Part No. HR10A-10J-10P(73)
Basic information
Connector Type Jack
Salt Spray Test Duration (Corrosion Resistance) 48 h
Number of Positions 10
Contact Plating Silver
Mating/Unmating Cycles 1000
Rated Current 2 A
Rated Voltage (AC) AC 100 V
Rated Voltage (DC) DC 140 V
Connector Orientation Straight
Wire Termination Method Soldering
Locking Style Push-pull
Recommended Wire Size (AWG) AWG 26
Shell Material Metal
Operating Temperature -25 to 85 ℃
Mechanical Specifications
Metal Shields No
Contact Gender Male
Electrical/Optical Specifications
Withstanding voltage 300 V Max.
Dimensional Information
Connector Length 14 mm
Connector Width 14 mm
Connector Height 43.5 mm
Cable Outer Diameter 7 mm
Packaging Specifications
Packaging Type Bag
Minimum Order Quantity 1 PCS
Mass 14.9 g
<<>
